280KN Stringing Equipment Overhead Transmission Hydraulic 28T Puller 11 Groove

Brand Name : GALAXY

Model Number : GS280

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per month

Delivery Time : 30 days

Packaging Details : Bulk

Type : Hydraulic Puller

Max intermittent pull : 280kN

Speed at max pull : 2.5km/h

Overall dimension : 5800×2500×2850mm

Bull-wheel diameter : 960mm

Groove number : 11

Contact Now

GS280 Stringing Equipment 280KN Overhead Transmission Hydraulic 28T Puller Equipment

Hydraulic Puller GS280 is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.

Quick Detail

  1. Model: GS280
  2. Overall dimension: 5800×2500×2850mm
  3. Hydraulic Transmission: Closed hydraulic circuit for step less speed variation in both rotating directions. Hydraulic Puller GS280 is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Performance parameter

Model GS40 GS60 GS90 GS120 GS150 GS180 GS220 GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180 220 280 380
Max continuous pull KN 30 50 80 100 120 150 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diese kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173) 239(320) 239(320) 298(400) 440(590)
Cooling system Water Water Water Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 600 600 700 760 960 960
Groove number 7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 27 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800 12600 13600

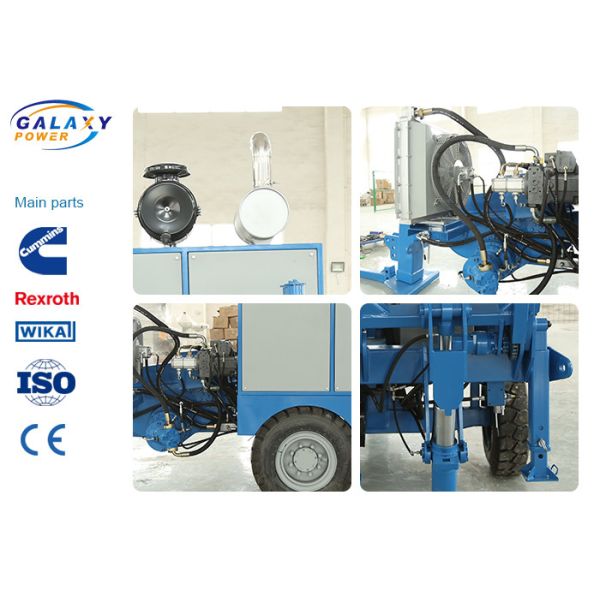

Main Configuration
Engine Cummins
Hydraulic meter German
Tail bracket hoisting motor American Eton
Operating handle German Rexroth
Main moter speed reducer German Rexroth
Main pump German Rexroth
Configuration
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point
Additional Devices
Lighting system for the trailer
Hydraulic rope clamp for reel change
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter (extra charge)
Swivel guide rope roller
Air brake system for the trailer
Extra shaft
